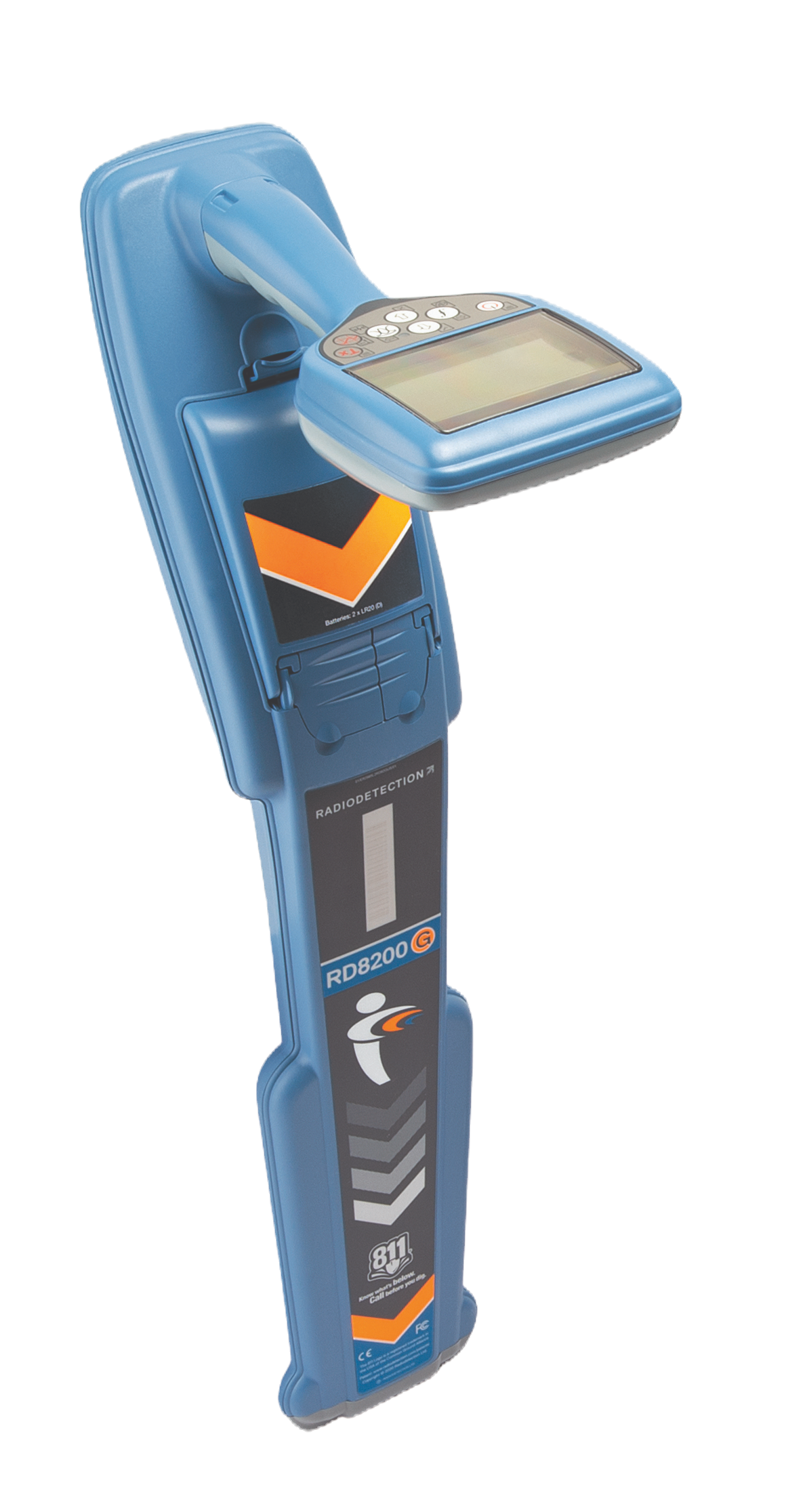

RD8200 Locator Kit

RD8200 Locator Kit

$7,347.00Price
The RD8200 is the most advanced locator with optional on-board GPS, data logging, 5 diamond precision cut antennas and much more

5 Diamond Cut Precision Antenna's
A unique arrangement of 5 diamond cut precision antennas with ground shields deliver superior locate accuracy.
Radiodetection patented software and Dynamic Overload Protection deliver clear locates in electric substations or under power lines. The industries most powerful antenna's locate over 50 feet deep all while giving the user an easy user interface with the new PEAK+ mode and directional compass, speed plus accuracy
  • 5 Earth Grounded Antennas
  • Directional Compass
  • 6 Antenna Configurations with new Guidance Mode and Peak+
  • Directional Compass
  • Auto Depth and Current Measurement



Internal GPS with SBAS
When equipped with GPS, RD8200G locators can be used to map utilities and export them to GIS maps using CSV and  Excel, or straight to Google Earth.  GPS with SBAS is 1-3 meters accuracte.  Each unit can utilize external GPS units for greater accuracy.


Usage Logging

Each unit also automatically logs each locate for over 500 days, providing a comprehensive picture of individual locates and allowing you to assess usage patterns.  Usage logs give proof of locate responses, training aids, or in-house quality and safety audits.
  • Store up to 1000 GPS map point with locate data (depth, current, frequency, etc)
  • Usage-logging of over 500 days of locates
  • Export to Google Earth, Excel or other GIS platforms
  • Tag your KML file to each 1-Call ticket



Bluetooth over 1400 feet
Each 8200 series receiver includes an advanced Bluetooth link to your transmitter from up to 1400 feet.  Switch power levels and frequencies from the receiver and spend less time walking and more time locating.  The Sidestep feature enables an operator to move the transmitter frequency slightly when multiple operators are locating.


Bluetooth Transfer Data

Save 1000 GPS locations and export using Bluetooth or USB.  Connect external GNSS enabled devices to combine survey measurements with that device’s GNSS data on the external device.
  • iLoc Remote control over your transmitter up to 1400+ feet
  • Send locate data to a laptop
  • Sync GNSS data from external GPS units



Remote Calibration and Customization
Using RD Manager software you can remotely certify your unit is calibrated, customize frequencies and options, review locate logs, download GPS data, and download software updates.  Choose to automatically schedule calbration and provide the user with a warning when his receiver is within 30 days from the selected service date.  All calbration certificates are stored within the locator and can be printed anytime.
  • Over 30 frequencies with custom frequency select up to 5 more
  • Self Calibration Checks
  • Free software updates
  • 50 software and hardware patents
  • 3 Year warranty
  • Ergonomically Sexy!!!



Li-Ion Battery Pack
Lithium-Ion rechargeable battery options for both the receiver and transmitter provide extended 35+ hours runtime and reduced running costs.  The locator allows the original alkaline pack to be used for another 13+ hours.
  • 10 Watts or 5 Watts of Power with 90 Volts!
  • 35+ Hours Run-time
  • Recharge on the fly using AC or your Auto DC outlet



TRANSMITTERS

The RD8200 can be ordered with a 5 Watt or 10 Watt transmitter.  Only the 10 Watt transmitter comes with additional Current Direction frequencies but both units come with Fault Find mode.  A large, high contrast, backlit LCD screen provides the user with clear information. The interface is intuitive and responsive, allowing the operator to access any feature with ease.  Each transmitter is capable of 90 Volts, which helps on really high impedience locates. The transmitters use 8 D-cell batteries and can be powered from the optional LiIon recharge kit or external AC plug.
